Description
Image of Survey Plan Description
View the official survey plan (SP/RP etc.) to confirm boundaries, bearings, distances, area and on-plan easements. Essential for design, fencing and access checks.

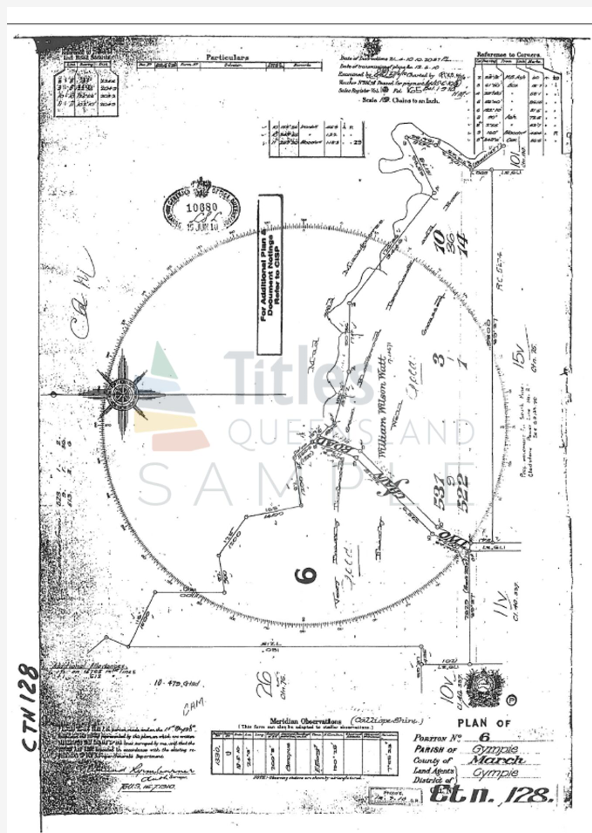

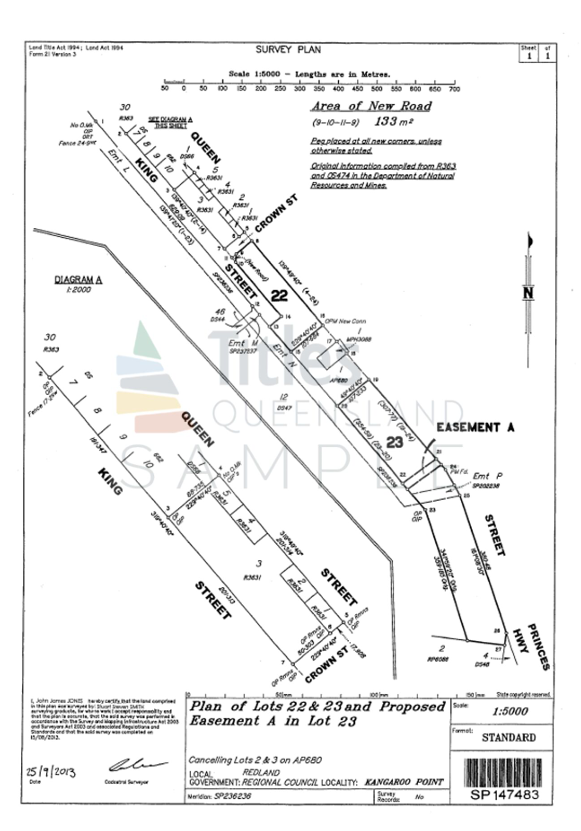

Image of Survey Plan – Queensland
A survey plan image shows the legal dimensions and layout of the lot, including annotations that can impact building envelopes, access and servicing.
What's included
- Lot boundaries, bearings, distances and area
- Plan details: surveyor, plan number, datum and notes
- On-plan easements/encumbrances sketches (where shown)
When to use it
- Homebuyers & owners: verify boundaries and frontage
- Designers & builders: confirm set-out and constraints
- Developers & planners: assess subdivision and access
Order a Queensland survey plan image to confidently check the lot's legal dimensions and layout.
